Q-Coat Product Range

Epoxy Coated Rebar ranging in diameter from 8mm to 40mm
Length : 12 Meter

International Standard of FBECR vis-a-vis Q-coat

Parameter ASTM
A775:2007
BS ISO
14654:1999
Q-coat
(Average)
Bar Anchor Profile 1.5-4.0 mils 1.96-2.75 mils 2.0-4.0 mils
Coating Thickness 7-12 mils [8-16mm]
7-16 [18-40mm]
7-12 mils 10-12 mils
(250-300 Microns)
Coating Holidays 3 holidays/m(max) 4 holidays/m(max) 3 holidays/m
Coating Flexibility 180 deg. bent using 8D 180 deg. bent using 4D&6D Complying with both standards
Cathodic Disbondment Test Not Applicable Average Disbondment Radius of Three Coated Steel Reinforcing bars shall not exceed 2mm Average Disbondment Radius of Three Coated Steel Reinforcing bars shall not exceed 2mm-4mm
Bont strength with the concrete Shall not be less than 85% off the uncoated bars Shall not be less than 85% off the uncoated bars Improved with 20 – 30% more rib height & Rib Area

Quality Assurance :

At Q-Coat we are committed to achieve and maintain the highest standards of quality in all areas of operation by in process quality tests such as :

  • Oil Contamination Test
  • Near-White Blast Cleaning using SSPC-SP10
  • Backside Contamination Tape Test
  • Copper Sulfate Test
  • Surface Profle Measurement
  • Bar surface temperature using non- sulfurous temperature- sensitive crayons and infrared temperature gauge
  • Epoxy coated rebar is tested for following quality parameters :

  • Coating holidays using inline and hand held holidays detector
  • Coating Thickness
  • Coating Flexibility by 180° Bend Test

The technical expertise of Q-Coat in Fusion Bonded Epoxy Coating is reflected in its product quality with
recommendations received from numerous authorities and companies such as KAHRAMAA (Qatar General Electricity & Water), QAFCO (Qatar Fertilizer Company) and ISO 9001:2015 Quality Management system.

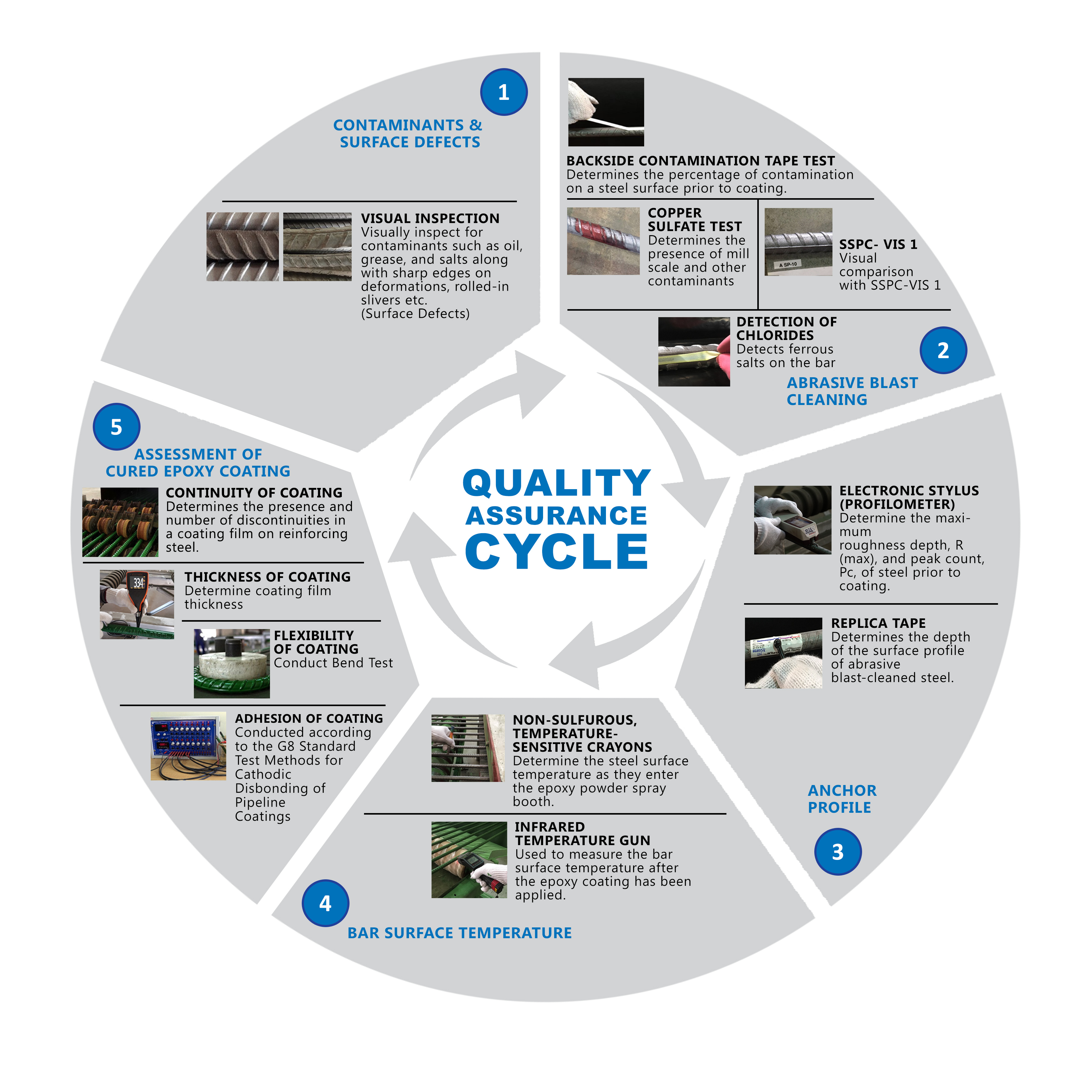

QA cycle
